171661-2
Manufacturer:
TE Connectivity
Mfr.Part #:
171661-2
Datasheet:
Description:

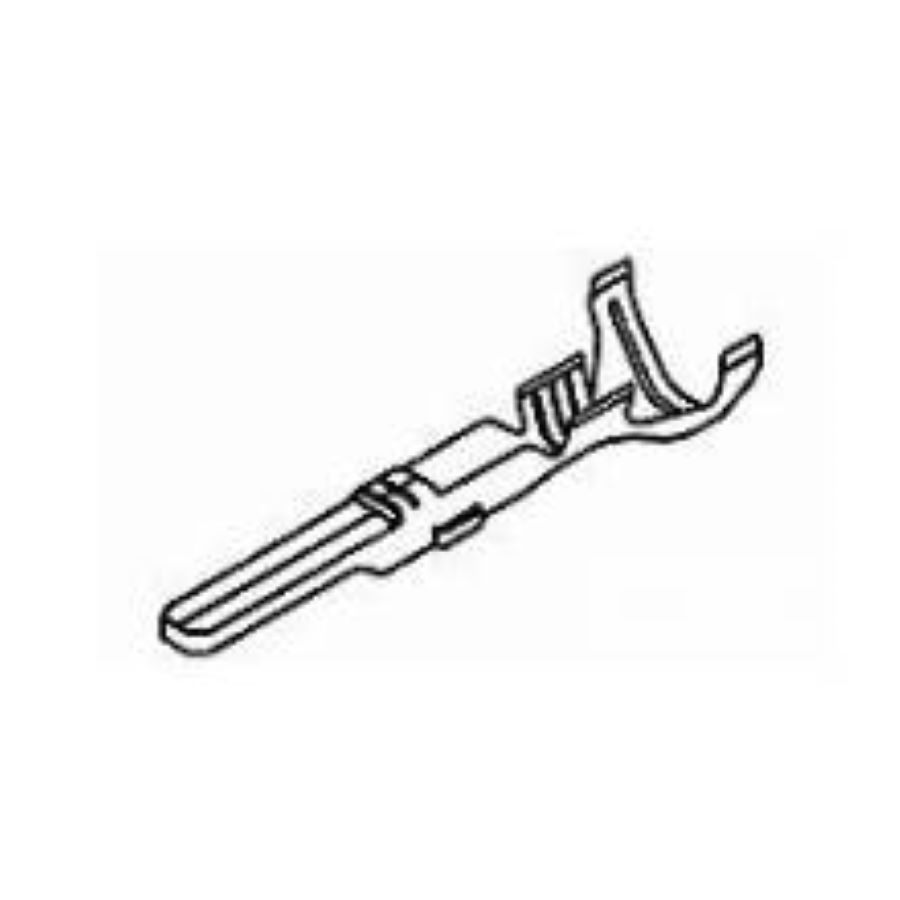

Automotive Connectors Cable Male 20 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 20.4 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 3.6 mm |
| Depth | 5.4 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, Power |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Insulation Diameter | 2.5 mm |
| Mating Tab Width | 1.8034 mm |
| Tab Thickness | 640 µm |
| Sealable | Yes |
| Current Rating | 10 A |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 20 AWG to 16 AWG |
Stock: 3708
Distributors
pcbx
pcbxUnit Price$0.36549
Ext.Price$0.36549
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36549 | $0.36549 |
| 5000 | $0.24366 | $1218.30000 |
